K cup filling sealing machine

Your Trusted Manufacturer of H1 model K cup filling sealing machines

K cup Filling Sealing Machine

The reliable Entry level Machine from AFPAK

Now, our H1 K cup filling sealing machine have also been upgraded. It is faster, more accurate, and more stable. Compact body allows you to use him anywhere

It is very easy to change the mold to produce different capsules, such as K cup, Nespresso, Dolce Gusto, Lavazza Point, Lavazza blue, and so on. However, you need to communicate with us in advance so that we can provide you with specific solutions.

Features:

  • Fast changeover for different capsules
  • +/- 0.2 grams filling accuracy
  • Small layout, can put in any place
  • Strong seal: Sealing temperature is adjustable
  •  Functions can be customized to create a unique machine for you
  • Smart operation, unmanned production
  • Efficient nitrogen filling to protect every cup of coffee
  • The control panel can customize the language for you

Simple, easy to use and clean, trouble-free, efficient, small footprint. . .

These are what the users thinking of it

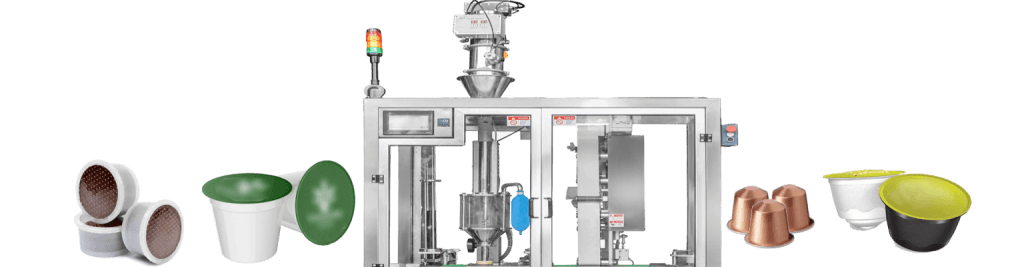

H1-K-cup-filling-sealing-machine-1536x400

COMPLETE FUNCTIONS, SMALL AND EXQUISITE

This is a full automatic K cup filling sealing machine which has the functions: Empty K -cup feeding, No cup No fill, Filling, Edge Cleaning, Sealing, Outputting.

You can choose to use pre cut lids and Roll film sealing materials.

It is widely used in Nespresso capsules, K cups capsules, Lavazza capsules, Dolce Gusto capsules, and other capsules production.

The electrical parts are mainly from Schneider, Omron, Autonics, SMC and airtac brands.

Must know
about the K cup filling sealing machine before inquiry.

  1. This is a customized device, so please be sure to tell us the type of capsule product you want to make, the required output, the product to be filled, and special requirements.
  2. AF-H1 K cup filling sealing machine can produce 30-50 capsules per hour, the speed varies according to the product you make, but its maximum stable production speed is 50 capsules per hour.
  3. It is an ideal entry-level K cup filling and sealing machine. His speed is not fast, suitable for start-up and small factories; can use single-phase power, can be produced at home; small footprint, a small room is enough. In addition, his use and maintenance are very simple, and no special technicians are needed to operate and use it. In addition, he is powerful, a machine can produce hundreds of different categories.
  4. Although it is not big, but he has all the functions, such as: empty capsule pick and place, no cup without filling detection, filling (with automatic coffee granules self-supply system), sealing surface residue powder cleaning, put film, no film Unsealing system, heat sealing system, cup outlet, 5-8 nitrogen filling system.
  5. Its electrical components mainly use high-quality components produced by Schneider, which guarantees the performance and long-term use of the machine, and also allows you to find replacement parts anytime, anywhere.
  6. The shape of our single-row machine adopts a new design. The whole body is made of high-strength iron with anti-rust paint, which is durable and easy to clean.
  7. The whole machine is controlled by HMI and can be used by one person. The program in the touch screen allows you to perform a variety of controls, such as counting stop, manual detection function, parameter setting, etc.The whole machine is controlled by HMI and can be used by one person. The program in the touch screen allows you to perform a variety of controls, such as counting stop, manual detection function, parameter setting, etc.
  8. All of our equipments are CE certified and comply with European and American import standards
  1. Fast changeover for different capsules like K cups, Nespresso, Lavazza blue, lavazza espresso point and dolce gusto
  2. Servo Motor Controlled Auger filling system (Filling volume is adjustable)
  3. Copper body heat sealing head with excellent thermal conductivity
  4. All food contact parts are made from food-grade Stainless steel 304 material (316L material is optional)
  5. Intelligent and safe production: no cup no filling, no film no sealing, open door machine shutdown, etc.
  6. 7-10 inch color control touch screen, multilingual interface, fault display, simple operation
  7. Automatic vacuum feeding system without manual operation
  8. The machine is fast, one machine is equal to more than 10 labor
  9. Stable operation, non-stop operation
ModelH1
Production30-50 K cups per minute
PLC

Schneider Brand

TM241CE40U Model

Touchscreen

Flexem Brand

FE6070H Model

Servo Motor

Schneider Brand

BCH2LF0733CA5C Model

Filling

Control: Servo Motor controlled Auger

1-20 grams adjustable

Accuracy: +/- 0.2 grams

Sealing

Copper material

0-400  ℃ Adjustable

Output

Sucker Vacuum pick out

Mechanical fingers pick out (Optional)

Power

3 Phs 220V 50/60hz, or 3 x 380V/50HZ

20A  3.5Kw/h

Air Consumption

30-35 Scfm

(7kw/10HP air compressor is OK)

Nitrogen Consumption

50-100L/min

(5Nm3/h Nitrogen generator is OK, can also connect with the Nitrogen tank)

DimensionsL1800*W820*H2150
Weight750KGS
Package1 machine in one wooden case
Order Lead Time1-2 months

H1 K cup filling sealing machine

in numbers

50 cpmin

Single lane can produce 30-50 cpmin

3sqm/32sq.ft

Small layout, Machine layout size is around L6.5ft*W3.2ft*H7ft

2.5KW/h

Save Energy, Machine power is 1ph 220V. and consumption 2.5KW/h

1 Operator

One Operator is enough for this machine, very easy to learn and use

H1 K CUP FILLING SEALING MCHINE
Working Video
Play Video

Source K cup Filling Sealing Machine

From A Qualified Factory

K-cup-filling-and-sealing-machine--OEM

Original Equipment Manufacturer

No matter you need small or big machines, no matter you need any functions, the AFPAK team will give you the one that you wanted

Test-and-Inspection-of-K-cup-filling-and-sealing-machine

Test and Inspection

In-house tests with state-of-the-art equipment guarantee both the performance and lifetime. No shipment if the test results are not met our standard

Certification-of-K-cup-filling-and-sealing-machine

Certification

As an ISO certified factory, we manufacture all K cup filling, sealing, and packaging machines in compliance with industrial standards.

Top supplier of K cup filling and sealingmachines and filling sealing packaging solutions from China. Ten years of focus, only offer fine products
