Rotary K cup filling machine
Your Trusted Manufacturer of Rotary K cup filling machine
Rotary K cup Filling Machine
The Most Popular Machine from AFPAK
Premium RN1S Rotary K cup filling machine,
refined and crafted by professionals that love their job!
After 7 years of continuous upgrading and R & D, we have collected feedback from several customers to make the RN1S K cup filling machine in 2020 exude vitality.
The newly designed system makes him more intelligent, and many improved functions make it easier to use.
RN1S rotary k cup filling machine, a nearly perfect device. It could be the partner you are looking for
Features:
- Accurate filling: +/- 0.15 grams accuracy
- Very easy to clean the filling hopper
- Strong seal: Sealing temperature is adjustable (twice sealing are also available)
- Functions can be customized to create a unique machine for you
- Efficient nitrogen filling to protect every cup of coffee
- The control panel can customize the language for you
NEW SYSTEM, NEW LOOK, NEW EXPERIENCE
Small but complete: 4sqm layout with all functions
Production of one high-quality Kcup capsule in one machine

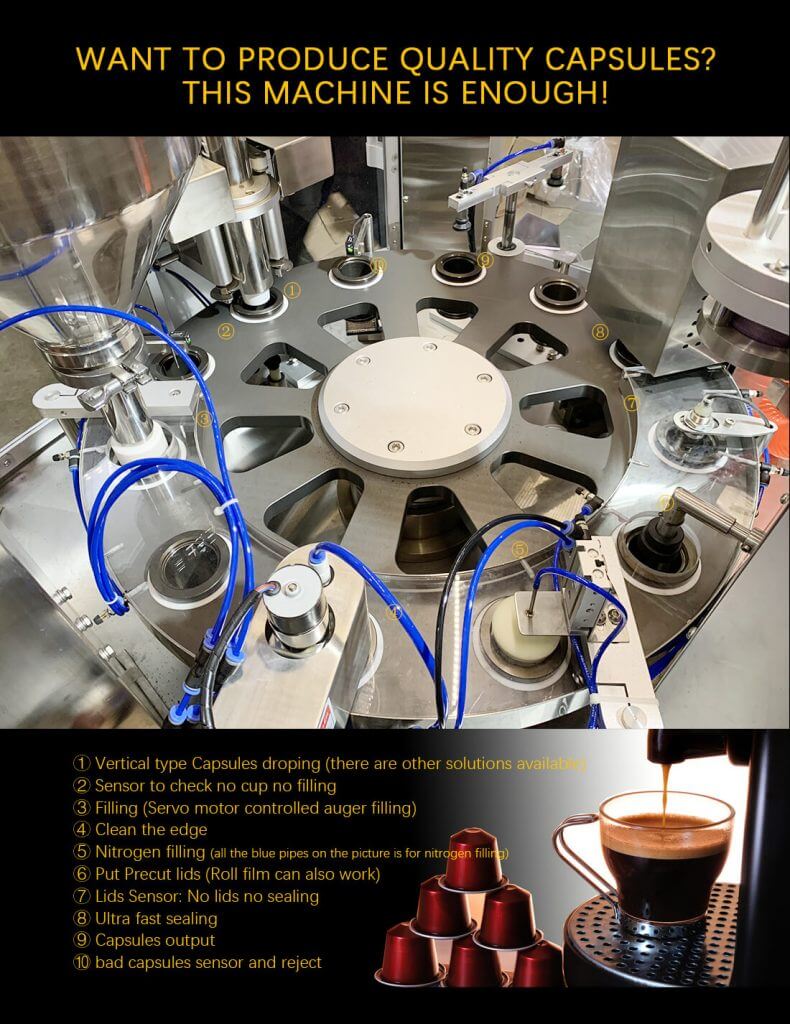

RN1S has empty k cup pick and place, No cup No fill sensor, fill, precut lids pick and place (Or use roll film cut and seal), seal, output.
No other equipment is needed, you can get a perfect K CUP in less than 1 second.
In addition, the machine can also purchase some accessories, such as online weighing systems, etc.
ULTRA-HIGH-SPEED PRODUCTION: 40% faster than other machines
When other machines can only produce 20 or 50 per minute, RN1S can already produce stably at 70 cups per minute, and the machine is very stable and will not shake. This is due to our new functional layout design and the application of more mechanized devices, and the strong load-bearing capacity of the machine.
Free your labor, a machine is equivalent to 10 workers, how good!
ONE MACHINE, THREE SYSTEMS: 20-30 minutes to change
The biggest advantage of the rotary machine is that it can change molds to produce different capsules. (As the machine size limited, it cannot produce like dolce gusto coffee products, Lavazza points,etc.)
This is an option, if need to change different systems, you need to tell us the capsules you want to use firstly
Your Every K cups capsule is the same weight (range: +/-0.15 grams)

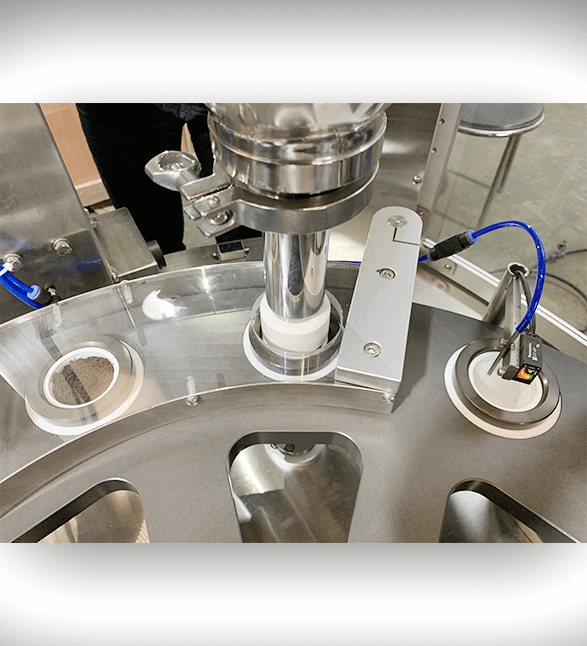

High-precision screw filling allows your coffee granules and other granular products to be quickly and accurately filled into the K-cups.
The filling weight can be adjusted, and you can load the product you want. One machine can do multiple SKUs. Meeting your customer needs
Your Every K cup Capsule is Beautiful
The newly designed sealing system can contact at high speed without affecting the appearance of the sealing surface, and the sealing strength is strong
The sealing temperature can be adjusted to meet the use of capsules of different materials.
Your coffee deserves better protection
Fresh coffee always attracts more people.
How to make your K-cup more people enjoy, then its preservation technology is very important.

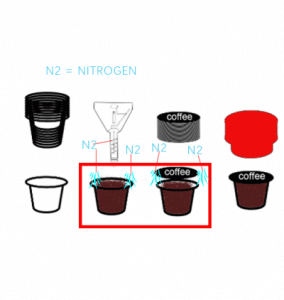

RN1S rotary K cup filling machine provides up to 7 nitrogen filling systems to keep kcup at the freshest moment
- Rotary type machine, very easy to clean and maintain
- No need for big space, it can put anywhere
- The fast changeover to produce different kinds of capsules
- You can fill tea, cocoa, and other products with this machine
- Users’ friendly structure design, easy to clean the filling hopper
- Servo Motor Controlled Auger filling system (Filling volume is adjustable)
- Copper body heat sealing head with excellent thermal conductivity
- Stainless steel housing, food-grade production equipment
- Intelligent and safe production: no cup no filling, no film no sealing, open door machine shutdown, etc.
- 7-10 inch color control touch screen, multilingual interface, fault display, simple operation
- The machine occupies a small area and is easy to move
- Enlarged cup storage structure reduces the workload of workers
- Automatic vacuum feeding system without manual operation
- The machine is fast, one machine is equal to more than 10 labor
- Stable operation, non-stop operation
Model | RN1S |
Production | 50-70 K cups per minute |
PLC | Schneider Brand TM241CE40U Model |
Touchscreen | Flexem Brand FE6070H Model |
Servo Motor | Schneider Brand BCH2LF0733CA5C Model |
Filling | Control: Servo Motor controlled Auger 1-20 grams adjustable Accuracy: +/- 0.2 grams |
Sealing | Copper material 0-400 ℃ Adjustable |
Output | Sucker Vacuum pick out Mechanical fingers pick out (Optional) |
Power | 3 Phs 220V 50/60hz, or 3 x 380V/50HZ 20A 3.5Kw/h |
Air Consumption | 30-40 Scfm (7kw/10HP air compressor is OK) |
Nitrogen Consumption | 50-100L/min (5Nm3/h Nitrogen generator is OK, can also connect with the Nitrogen tank) |
Dimensions | 1250*1250(-1780) * 2214 mm |
Weight | 800KGS |
Package | 1 machine in one wooden case |
Order Lead Time | 1-2 months |
RN1S K cup filling machine
To be amazed
FAST
Up to 70 C.P.Min
40% faster than other machines
aUTOMATIC
It is a fully automatic system One person is enough for this machine
SMALL
One machine only need a small space, and easy to move
Single Phase
RN1S uses single-phase 220V power, can also make other voltages
Your K cup filling machine should be very easy to clean
Coffee powder equipment is best to clean the barrel at the end of each day. It used to take an hour to clean up, now you only need 10 minutes.
See how easy it is to clean our equipment
RN1S K cup Filling Machine in Numbers
50-70 CPMIN
Machine can produce 50- 70 K cups per minute
2 Kw/h
The power consumption of the machine
2 m * 1.5m
The machine layout is only 1.8mL*1.2mW * 2.2mH
15A
Current required by the machine
Source K cup Filling Machine
From A Qualified Factory
Original Equipment Manufacturer
No matter you need small or big machines, no matter you need any functions, the AFPAK team will give you the one that you wanted
Test and Inspection
In-house tests with state-of-the-art equipment guarantee both the performance and lifetime. No shipment if the test results are not met our standard
Certification
As an ISO certified factory, we manufacture all K cup filling, sealing, and packaging machines in compliance with industrial standards.
